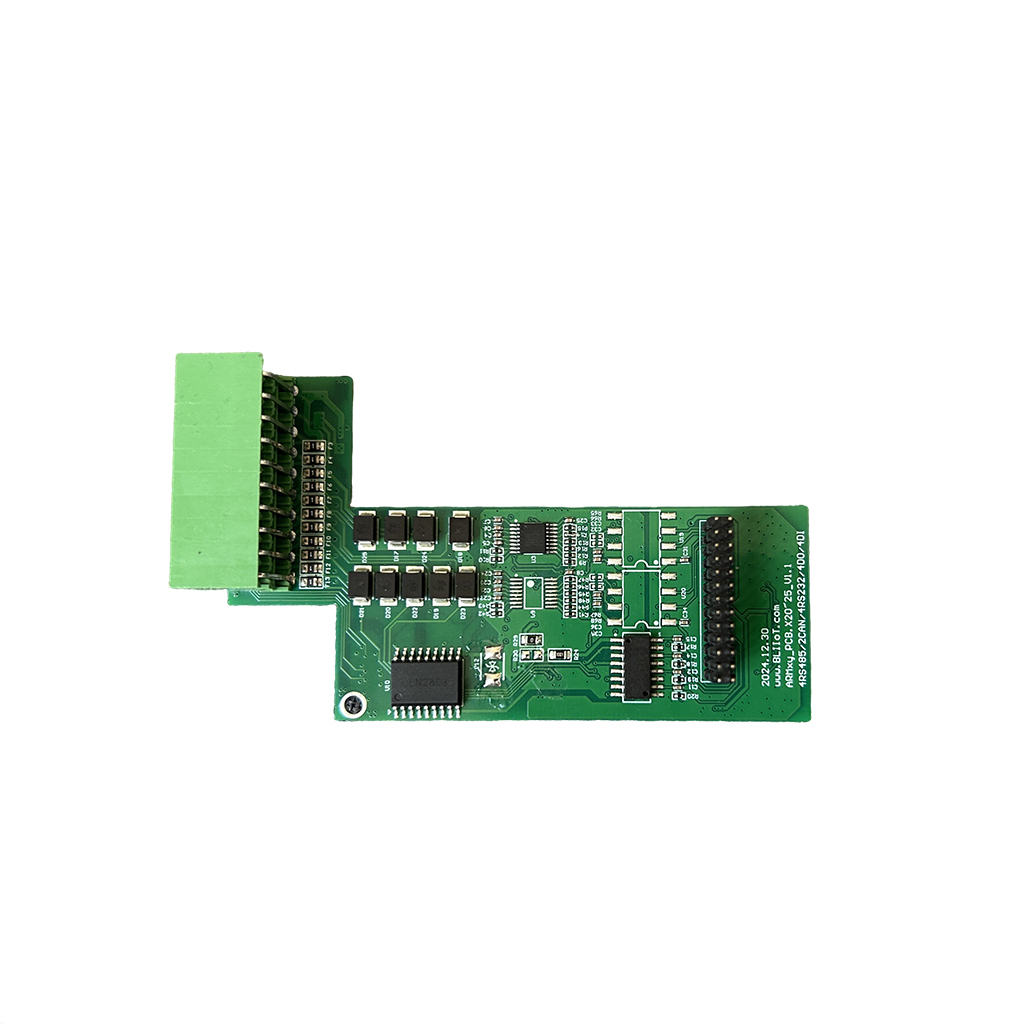

2RS485+2CAN Module Compatible with the TPC Series

No.TPC Series X4
The TPC Series X4 is a serial communication expansion module for industrial tablets, combining RS485 and CAN bus interfaces with electrical isolation and robust protection for reliable operation in demanding industrial environments.
Request Pricing Download
Description

The TPC Series X4 is a serial communication expansion module for industrial tablets, combining RS485 and CAN bus interfaces with electrical isolation and robust protection for reliable operation in demanding industrial environments.

Technical Specifications

Power

  • Operating Voltage5V
  • Power Consumption2W

RS485

  • Channels2 × RS485
  • Max Baud Rate10 Mbps
  • Data Bits5, 6, 7, 8 bit (adjustable)
  • Stop Bits1, 2 bit (adjustable)
  • ParityOdd, Even, None (adjustable)
  • Flow ControlNot supported
  • Impedance120 Ω
  • Distance & Baud Rate200 m (baud rate ≤ 115200 bps)
  • Multi-dropSelf-developed
  • Communication ModeUnidirectional half-duplex / simplex
  • Data Transmit/Receive ModeTransmit/Receive, Receive, Transmit
  • Logic LevelLogic "1": -3V; Logic "0": +3V
  • Max Output Current per Channel100 mA (26℃)
  • Isolation Protection2 KVrms (built-in)
  • Cable RequirementShielded twisted pair

CAN

  • Channels2 × CAN
  • Transmission ModeCAN bus
  • Max Baud RateCarrier: 1000 Kbps; Data: 5000 Kbps
  • Flow ControlNot supported
  • Impedance45 kΩ
  • Distance & Baud Rate200 m (baud rate = 500 Kbps)
  • Multi-dropSupported
  • Logic VoltageLogic 1: 3.5V; Logic 0: 1.2V
  • Max Output Current100 mA (26℃)
  • Isolation Protection2 KVrms (built-in)
  • Cable RequirementShielded twisted pair

Certifications (EMC)

  • ESDIEC 61000-4-2 Level 3
  • EFTIEC 61000-4-4 Level 3
  • SurgeIEC 61000-4-5 Level 3
Model Selection
No. Model Channel Signal Type
1 X0 6 2DI+1CAN+1RS485+2DO
2 X1 4 4RS485
3 X2 4 4RS232
4 X3 4 2RS485+2RS232
5 X4 4 2RS485+2CAN
6 X5 4 2RS232+2CAN
7 X6 6 2RS485+4GPIO
8 X7 6 2RS232+4GPIO
9 X8 5 1CAN+1RS485+1RS232+2GPIO
10 X9 8 4DI+4DO
11 X09 8 8DI
