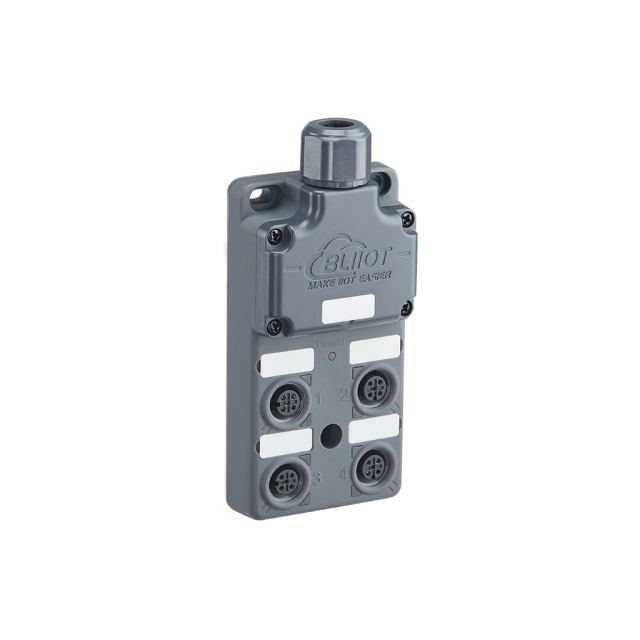

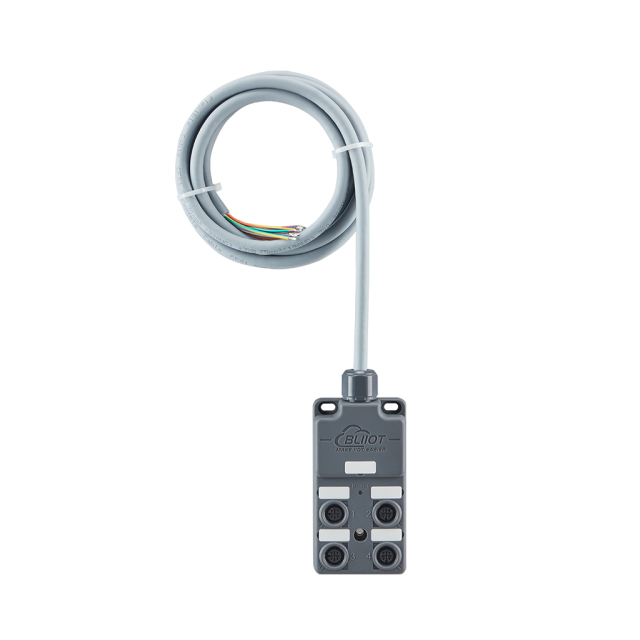

1. Overview
DBW series sensor distributor adopts an industrial-grade design with a corrosion-resistant housing made of
acid and alkali-resistant materials. It can achieve an IP67 protection rating and, through potting technology,
can reach an IP69K protection rating. It can be used to collect NPN or PNP sensor signals from different
devices on-site, integrating them into a single multi-core cable for connection from the sensors to the
controller.
The DBW series sensor distributor features a compact size, offering flexible installation and simple, stable,
and reliable wiring. It is suitable for a wide range of industrial automation equipment, including logistics
equipment, food processing equipment, pharmaceutical equipment, and more.
2.Sensor Distributor Naming Convention

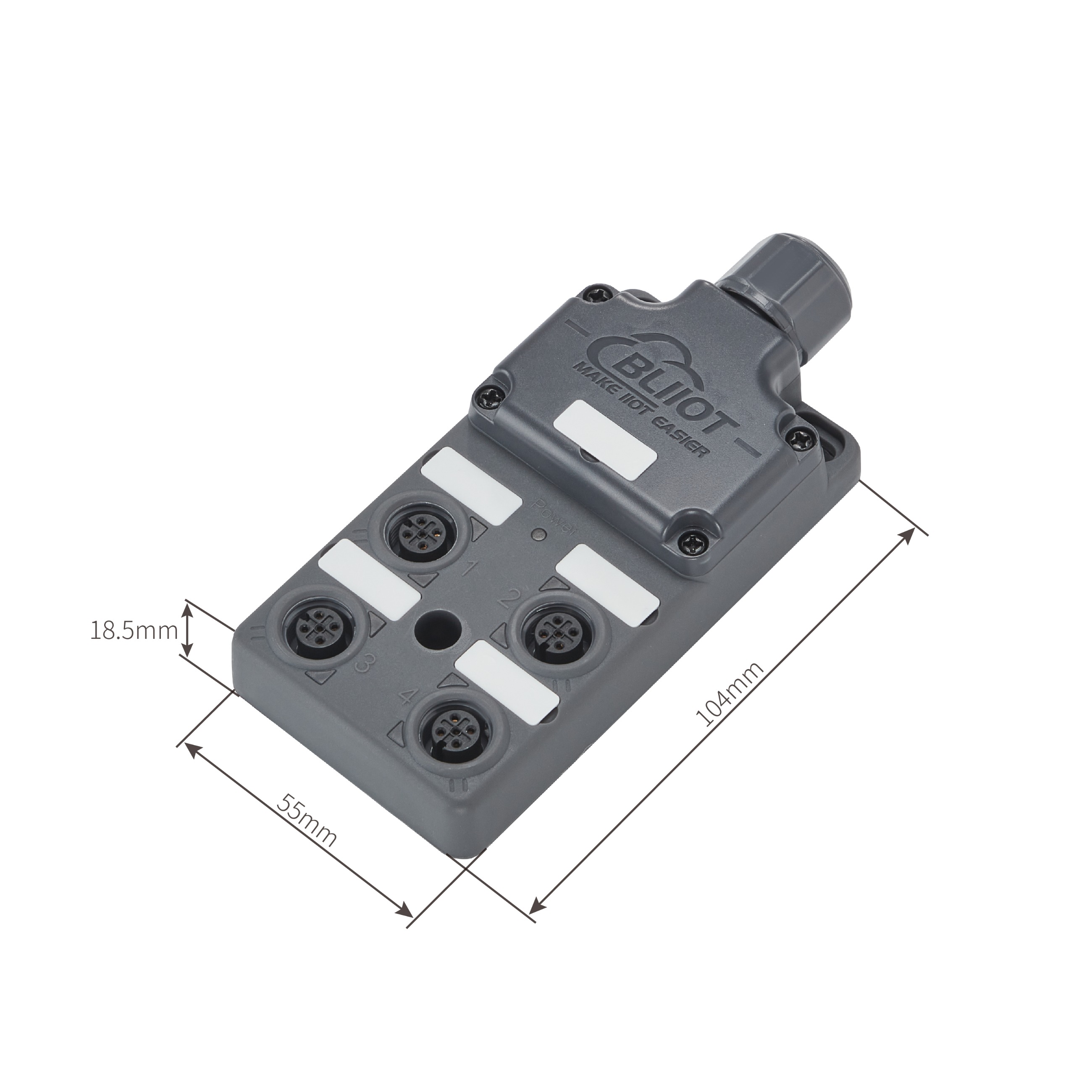

3. Product Deimenson
4. Technical Parameters
| Rated Voltage |
24V DC |
| Rated Current |
2A |
| IP Level |
IP67/IP69K |
| Safety Protection |
Main Circuit, Branch Circuit Overload Protection |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-40~+85℃ |
| LED Indicators |
Power Supply (Red), Signal S1 (Yellow), SignalS2 (Yellow) |
