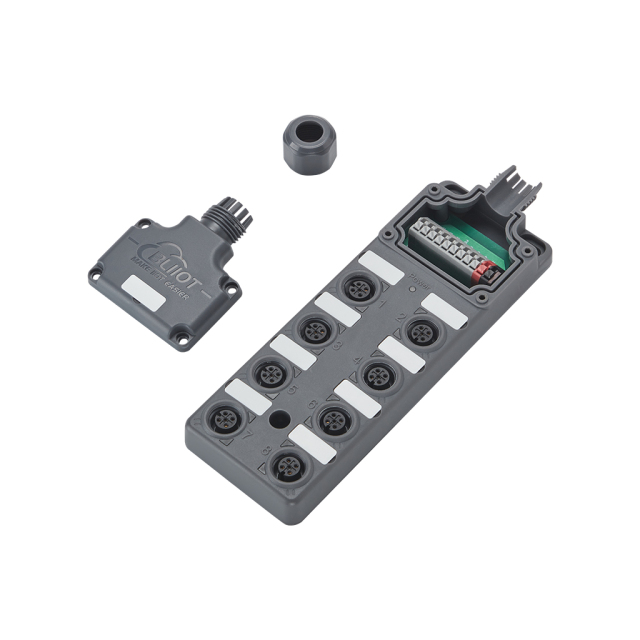

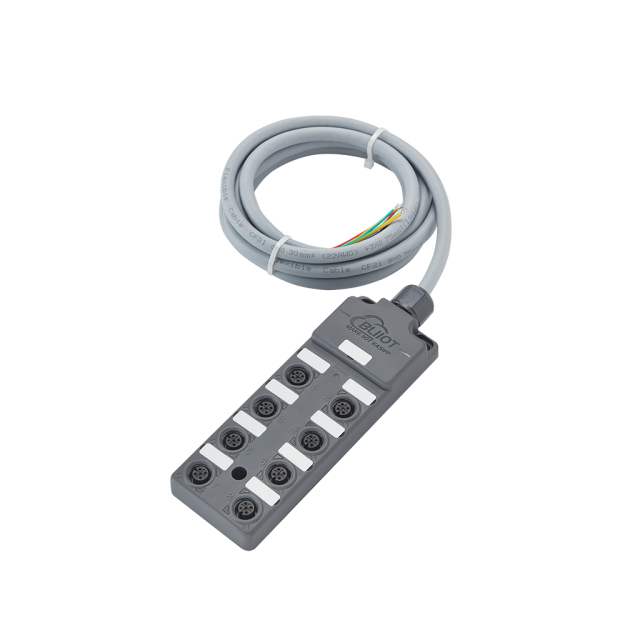

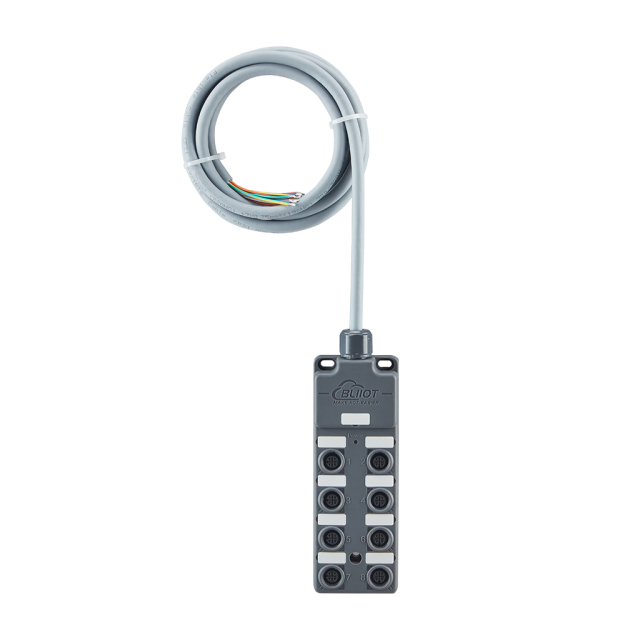

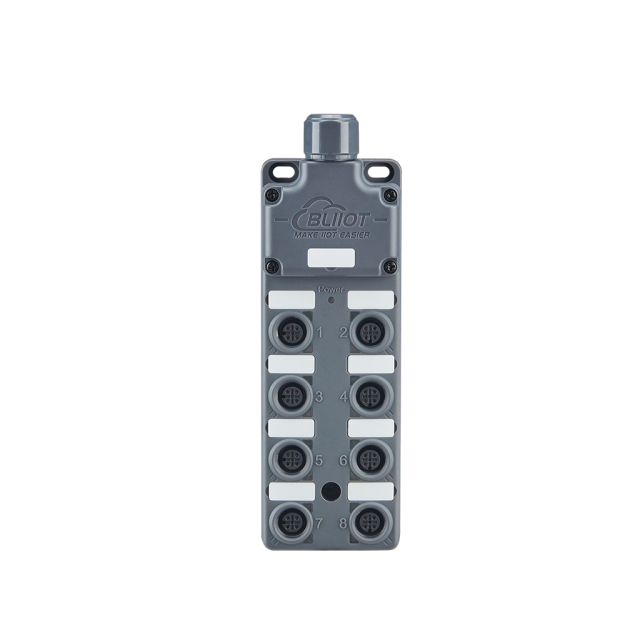

DBT Series M12 tool-free terminal sensor distributor features an industrial-grade design and built-in tool-free terminals for convenient on-site wiring. The housing is made of acid and alkali-resistant materials and can achieve an IP65 protection rating. It can be used to collect NPN or PNP sensor signals from various devices on-site, integrating them into a single multi-core cable for connection from sensors to the controller through the cable.
The cable length of the sensor distributor can be customized according to on-site requirements, facilitating quick on-site wiring. The sensor distributor is compact, allowing for flexible installation, simple wiring, and reliable stability. It is suitable for a wide range of industrial automation equipment, including logistics equipment, food processing equipment, pharmaceutical equipment, and more.

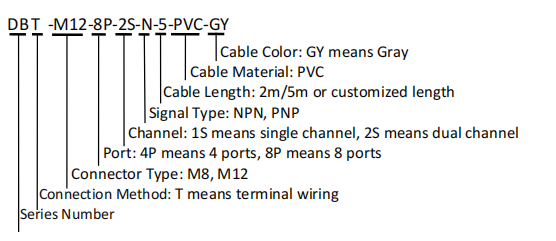

2.Sensor Distributor Naming Convention
| Rated Voltage | 24V DC |
| Rated Current | 2A |
| IP Level | IP65 |
| Safety Protection | Main Circuit, Branch Circuit Overload Protection |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -40~+85℃ |
| LED Indicators | Power Supply (Red), Signal S1 (Yellow) |
