8-channel analog output
The module provides AO1 through AO8 and outputs -5~5 V or -10~10 V voltage control signals for field devices.
BL335
N Series Distributed I/O
Output. Isolate.
Control.

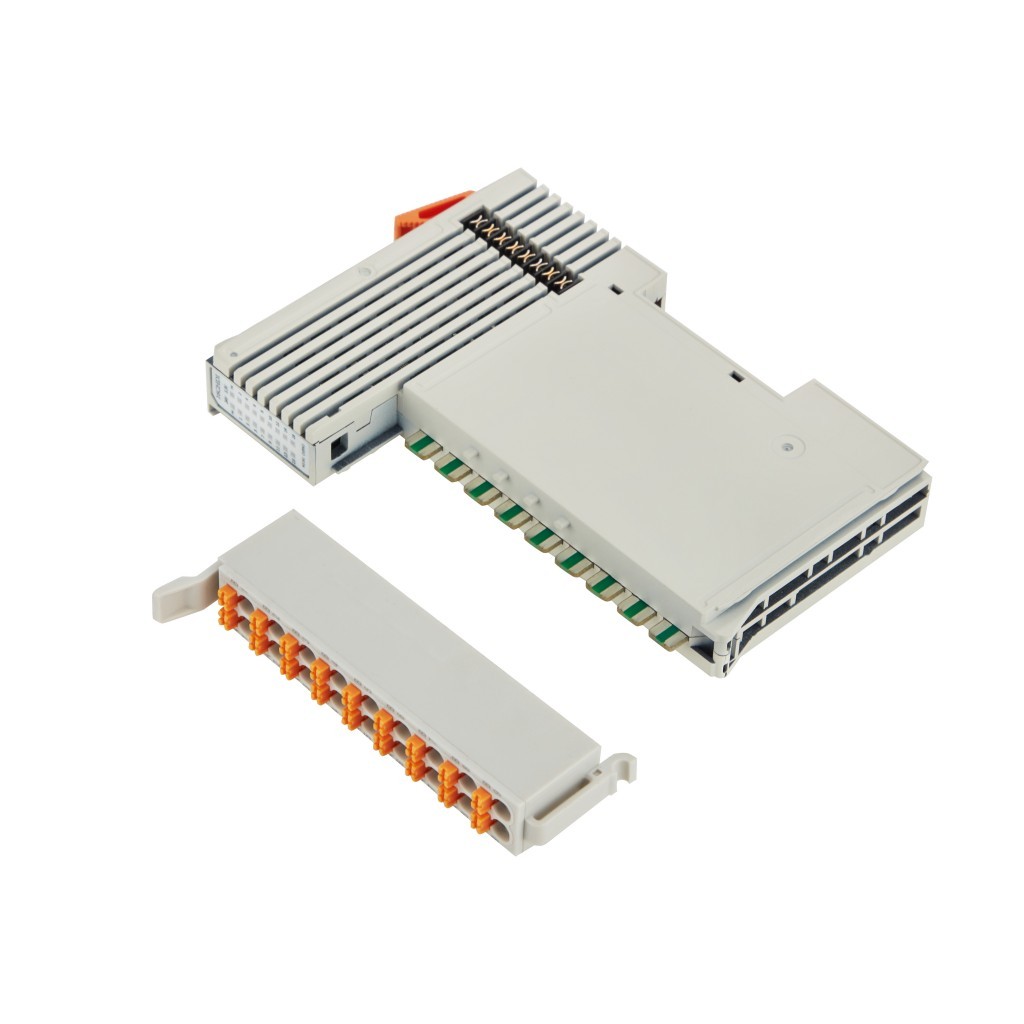

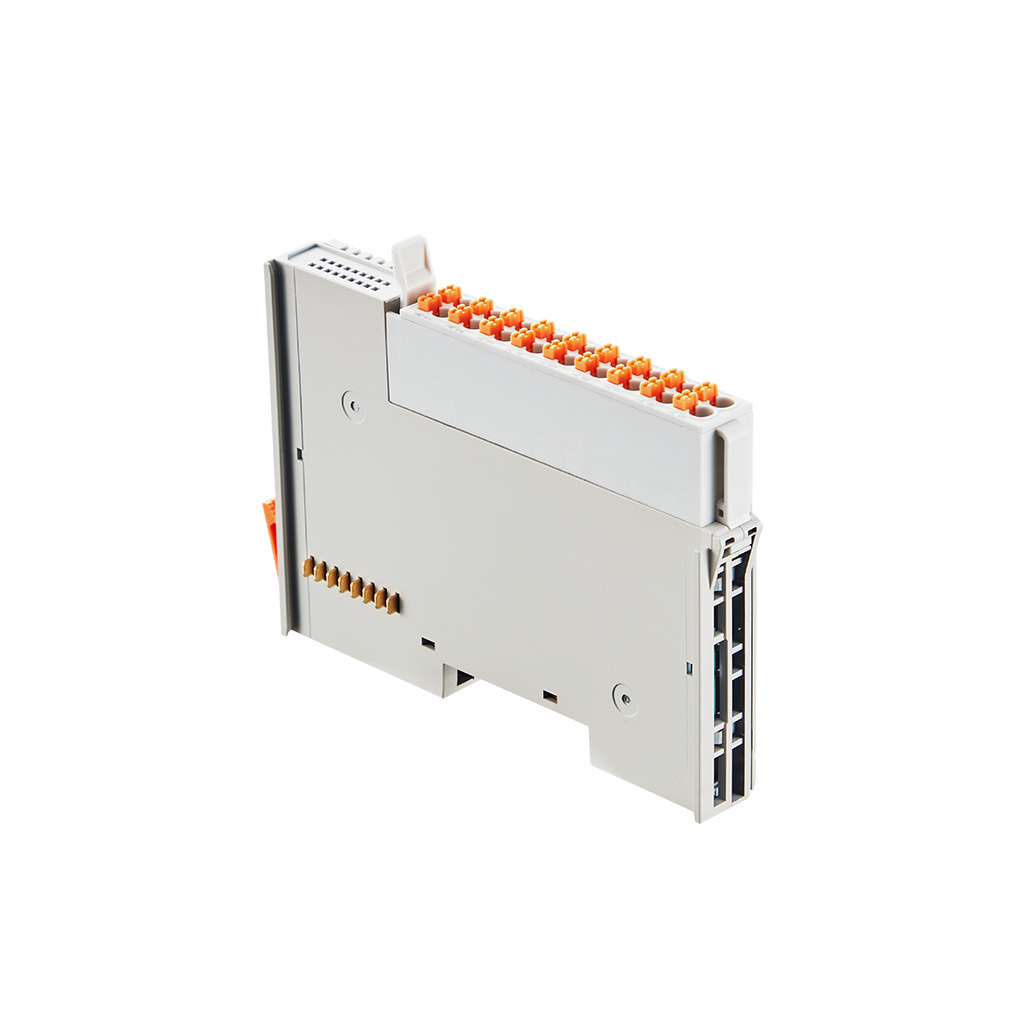

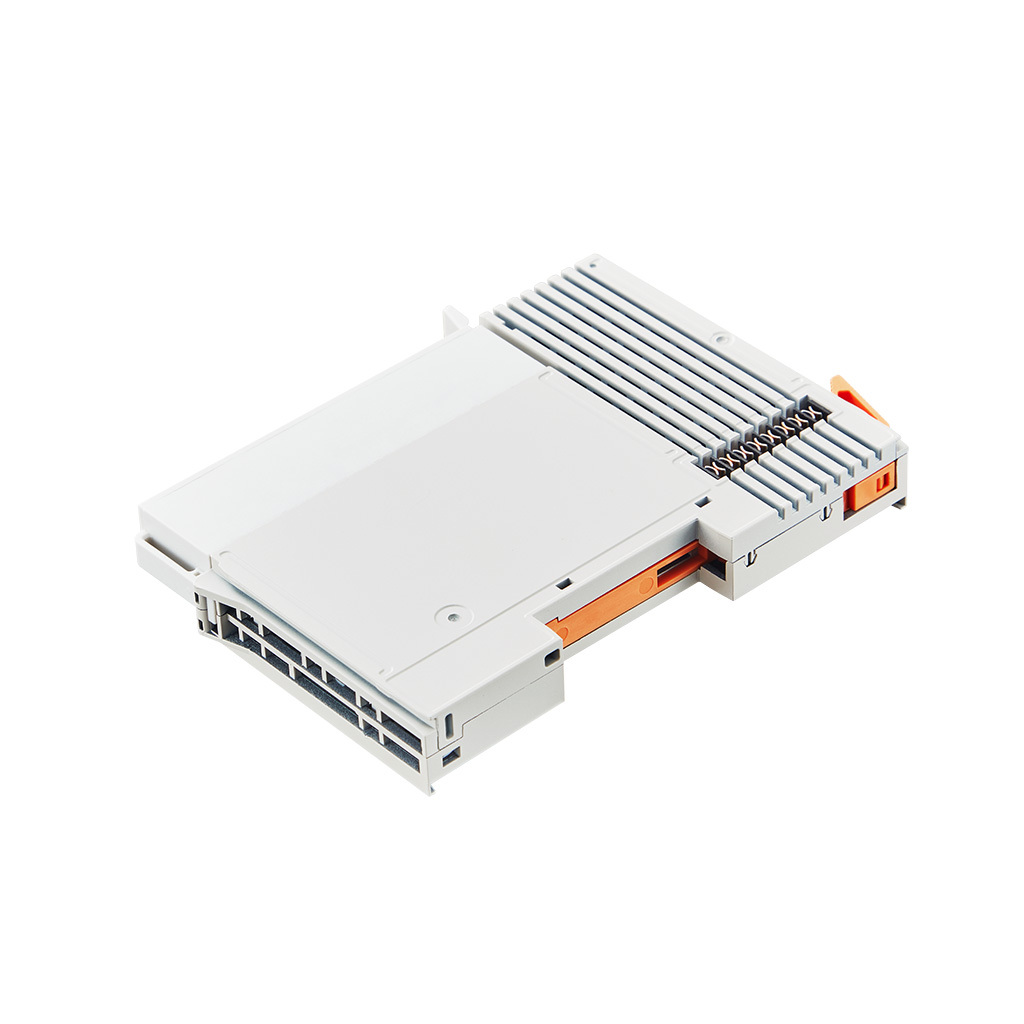

N4086 provides 8 analog output channels, AO1 through AO8. It outputs -5~5 V or -10~10 V voltage control signals for actuating field devices.
Each channel output is electrically isolated and transmitted with 16-bit resolution, ±0.3% FSR accuracy at 25°C, a 20 ms conversion time, and load impedance up to 30 kΩ.
8Analog output channels
16 BitSignal resolution
±0.3%FSR accuracy at 25°C
20 msConversion time
8 AO channelsAO1 through AO8.
-5~5 / -10~10 VIndustrial voltage control output.
DIN-35 mountFor distributed fieldbus I/O systems.
Technical specifications
N4086 technical specifications.
Analog output range, resolution, accuracy, conversion time, load impedance, wiring requirements, environmental ratings, dimensions, terminal definitions, and distributed I/O system requirements.
8Analog output channels
16 BitSignal resolution
±0.3%FSR accuracy at 25°C
DIN-35Industrial rail installation
N4086 voltage output ranges
N4086 supports both -5~5 V and -10~10 V voltage control output. Both ranges use the same 8-channel, electrically isolated, 16-bit analog output platform.
| Selection point | -5~5 V mode | -10~10 V mode |
|---|---|---|
| Model | N4086 | N4086 |
| Output range | -5~5 V | -10~10 V |
| Channels | 8 channels | 8 channels |
| Resolution | 16 Bit | 16 Bit |
| Conversion time | 20 ms | 20 ms |
Electrical specifications
Analog output, conversion, load, power, and indication data for the N4086 module.
01
ModelN4086
Analog output channels8 channels, AO1 to AO8
Output range-5~5 V / -10~10 V
Output purposeVoltage control signals for actuating field devices
Channel isolationEach channel output is electrically isolated
Resolution16 Bit
Accuracy±0.3% FSR at 25°C
Conversion time20 ms
Load impedance≤30 kΩ
Internal bus power5 VDC, 32 mA at 5 VDC
Power indicationLeft P: 24 V power indicator; right P: 3.3 V power indicator; red LED on means power normal
Channel indicationPanel positions 1 to 16 are reserved
Wiring and installation
Connection and mounting data for the N4086 module.
02
Terminal designCage-clamp connections; one conductor per cage clamp
Supported conductor typesSolid, stranded, and fine-stranded conductors
Multiple-conductor ruleJoin multiple conductors into a single point before connection
Conductor diameter0.3 to 2.5 mm² / AWG 22 to 14
Strip length8 to 9 mm / 0.33 in
Cable recommendationShielded cables are recommended
AO terminalsB1 AO1; B2 AO2; B3 AO3; B4 AO4; B5 AO5; B6 AO6; B7 AO7; B8 AO8
GND / PE terminalsA1 through A8 are GND; A9 and B9 are PE
InstallationIEC 60715 DIN-35 rail mounting
Environmental performance
Operating limits and protection information stated in the manual.
03
Operating temperature-20°C to 55°C
Storage temperature-40°C to 70°C
Relative humidity5%RH to 95%RH, non-condensing
Operating altitude0 to 2,000 m
Protection typeIP20
EMCIEC 61000-4-2 (ESD) Level 2 and IEC 61000-4-5 (Surge) Level 2
Mechanical and system data
Physical dimensions and distributed I/O system requirements.
04
Dimensions15.4 × 104.6 × 74.9 mm
Weight71.2 g
Internal bus8 data contacts; gold-plated contacts are self-cleaning before connection
Required couplerA suitable fieldbus coupler, such as a BL210 Series coupler
Station arrangementI/O modules may be arranged in any combination without grouping by module type
Installation sequenceStarting from the fieldbus coupler, assemble I/O modules from left to right; insert from the right and top along the module guide rails; install an end cap on the last module
RemovalUse a flat-head screwdriver or similar tool to pry the rail clip upward, then pull the module away from the DIN rail
Electrically isolated outputs
Each channel output is electrically isolated and transmitted with 16-bit resolution.
Distributed I/O module
N4086 is an optional N-Series I/O module and must be combined with a suitable coupler, such as a BL210 Series coupler.
N4086 analog output characteristics
8 analog outputs. -5~5 V or -10~10 V. 16-bit.
N4086 combines eight electrically isolated analog output channels, -5~5 V / -10~10 V voltage output, 16-bit resolution, ±0.3% FSR accuracy at 25°C, a 20 ms conversion time, cage-clamp wiring, and stated EMC protection.
8-channel output
Control AO1 through AO8 in one 15.4 mm-wide module.
Two voltage ranges
Use -5~5 V or -10~10 V voltage control output according to the application.
16-bit output
Analog output signals are transmitted with 16-bit resolution and a 20 ms conversion time.
Specified environment
IP20 protection, IEC 61000-4-2 and IEC 61000-4-5 Level 2 EMC, and -20°C to 55°C operation.
N4086 output range
Choose -5~5 V or -10~10 V voltage output.
N4086 provides eight analog output channels and supports both -5~5 V and -10~10 V voltage control signals.
N4086 · -5~5 V Output
-5~5 V voltage control
N4086 provides 8 electrically isolated analog output channels with -5~5 V voltage output, 16-bit resolution, ±0.3% FSR accuracy at 25°C, and a 20 ms conversion time.
8Analog output channels
16 BitSignal resolution
-5~5 VOutput signal range
AO1–AO8Output channels
Field deviceAnalog output module
Actuator
-5~5 V output
N4086 · -5~5 V analog output
Connection and installation
Terminal definitions and module installation.
Use the defined AO, GND, and PE terminals, and install the module on a compliant DIN-35 rail as part of the distributed I/O station.
Terminal definitions
AO1 to AO4B1/B2/B3/B4 are AO1/AO2/AO3/AO4; A1/A2/A3/A4 are GND.
AO5 to AO8B5/B6/B7/B8 are AO5/AO6/AO7/AO8; A5/A6/A7/A8 are GND.
Output rangeN4086 supports -5~5 V and -10~10 V voltage control output.
Protective earthA9 and B9 are PE.
Installation and internal bus
Rail and sequenceMount on a DIN 35 rail compliant with IEC 60715 and assemble modules from the fieldbus coupler left to right.
Insert the moduleAlign the spring contact with the groove, keep the rail clip unlocked, press the module into position until it snaps onto the rail, then lock the rail clip.
Data contactsEight gold-plated, self-cleaning data contacts provide communication and system power through the internal bus.
End cap and removalInstall an end cap on the last module. To remove a module, pry the rail clip upward with a flat-head screwdriver or similar tool and pull the module away from the DIN rail.
Use 0.3 to 2.5 mm² / AWG 22 to 14 conductors, strip 8 to 9 mm / 0.33 in, and use shielded cables as recommended.

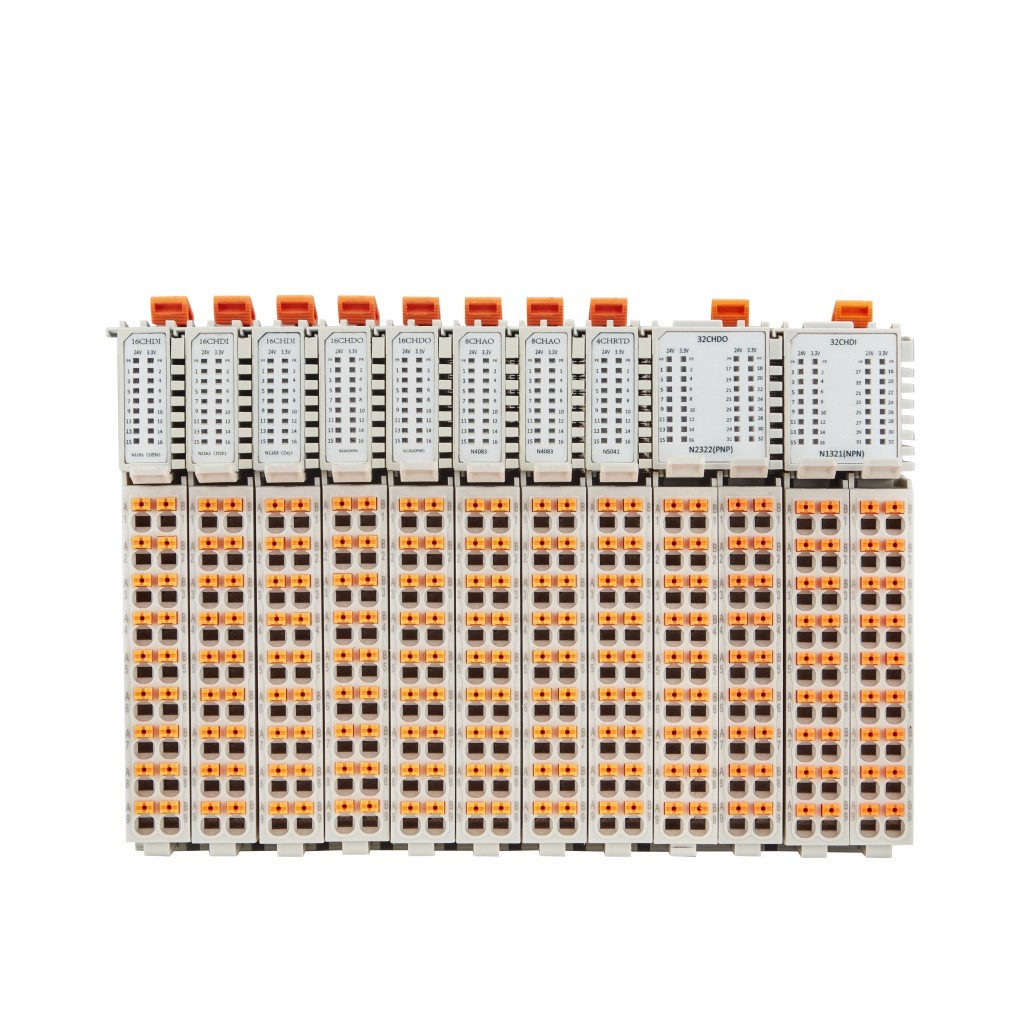

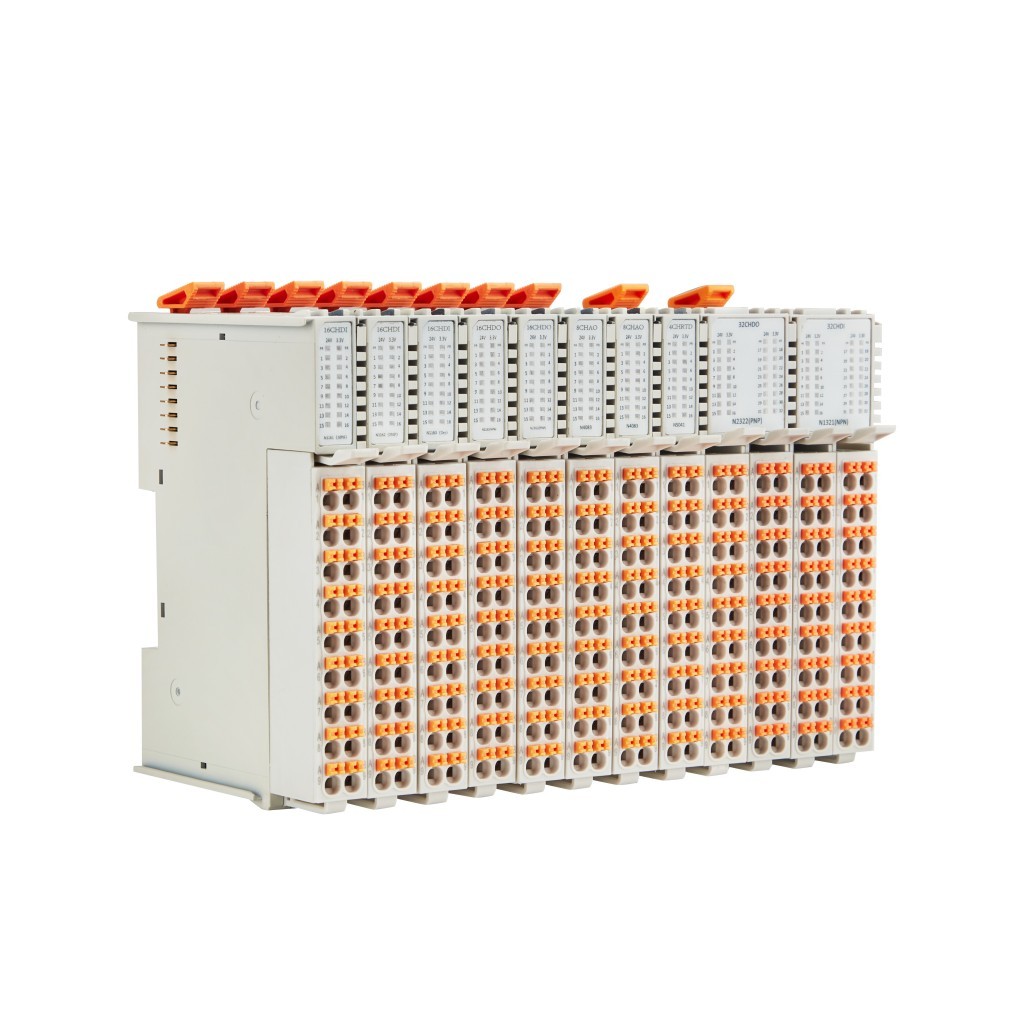

N-Series module family
More N-Series I/O module options.
The N-Series includes digital input, digital output, analog input, analog output, RTD, temperature, pulse, and power modules.
I/O modules can be arranged in different combinations within the distributed I/O station without grouping them by module type.
26 modules · 8 categories
6 modules
DI
Digital input options for NPN, PNP, and dry-contact sensing.
-
N116116CH DI Module (Low-Level Trigger / NPN)
-
N116216CH DI Module (High-Level Trigger / PNP)
-
N116316CH DI Module (Dry Contact)
-
N132132CH DI Module (NPN)
-
N132232CH DI Module (PNP)
-
N132332CH DI Module (Dry Contact)
5 modules
DO
Digital and relay output options for discrete control.
-
N20848CH Relay Output Module
-
N216116CH DO Module (PNP)
-
N216216CH DO Module (NPN)
-
N232132CH DO Module (PNP)
-
N232232CH DO Module (NPN)
3 modules
AI
Analog input options for current and voltage acquisition.
-
N30464CH 16-bit AI Module, Differential Input, ±5V / ±10V
-
N30818CH 16-bit AI Module, Single-Ended Input, 0/4-20mA
-
N30838CH 16-bit AI Module, Single-Ended Input, 0-5V / 0-10V
2 modules
AO
Analog output options for current and voltage control.
-
N40818CH 16-bit AO Module, 0/4-20mA Output
-
N4086Current model8CH 16-bit AO Module, ±5V / ±10V Output
4 modules
RTD
RTD modules for PT100 and PT1000 temperature sensing.
-
N50414CH RTD Module, three-wire PT100
-
N50424CH RTD Module, three-wire PT1000
-
N50434CH RTD Module, four-wire PT100
-
N50444CH RTD Module, four-wire PT1000
2 modules
Temperature
Dedicated temperature modules for NTC and thermocouple signals.
-
N50858CH NTC Module
-
N50888CH TC Module
3 modules
Pulse
Pulse counting and pulse-output control modules.
-
N90813CH Pulse Counter + 5×DI
-
N90826CH Pulse Output + 2×DO
-
N90832CH Pulse Output (Pulse Count Control) + 4×DI + 2×DO
1 module
Power
Additional power support for larger N-Series stations.
-
N7021Power Module
Important system note
When the number of selected N-Series I/O boards exceeds 20, an additional power module is required. If the number is less than 20, no extra power module is needed.
Installation and wiring
Key operating steps from the N4086 manual.
The manual specifies the installation sequence, module insertion and removal procedure, cable selection rules, and the N4086 wiring example.
Installation sequence
Mount the coupler and I/O modules on a DIN 35 rail compliant with IEC 60715, then assemble modules from the fieldbus coupler left to right.
Inserting a module
Align the spring contact with the groove, keep the rail clip unlocked, press the module into position until it snaps onto the rail, and lock the rail clip.
Removing a module
Use a flat-head screwdriver or similar tool to pry the rail clip upward, then pull the I/O module away from the DIN rail.
Cable selection
Cage clamps accept solid, stranded, and fine-stranded conductors. Use one conductor per clamp, 0.3 to 2.5 mm² / AWG 22 to 14, with an 8 to 9 mm strip length.
