Energy Storage Controller

LTE card for BL118

GSM 3G 4G SMS Remote Controller Alarm (8DIN+2DO+USB)

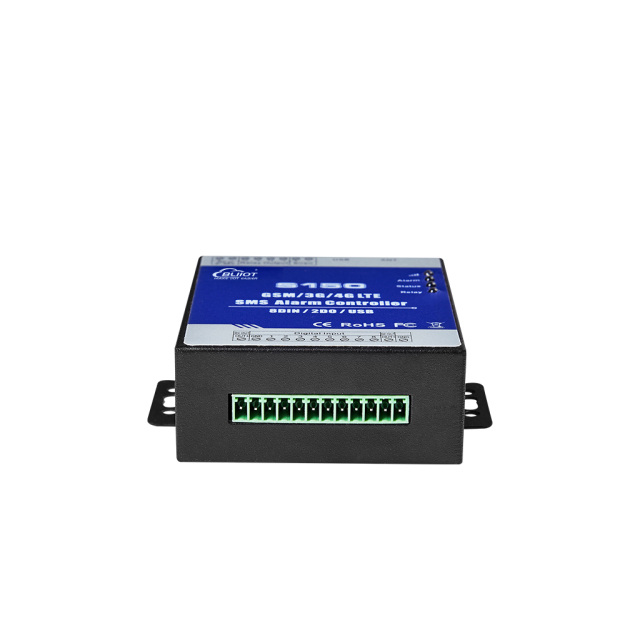

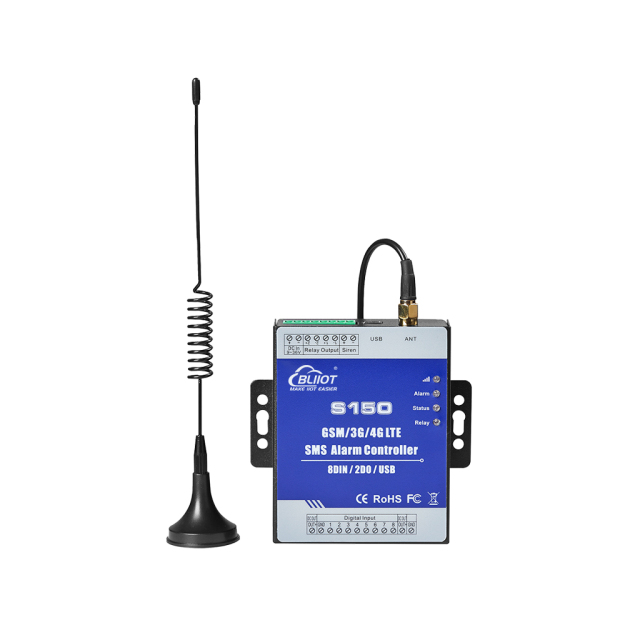

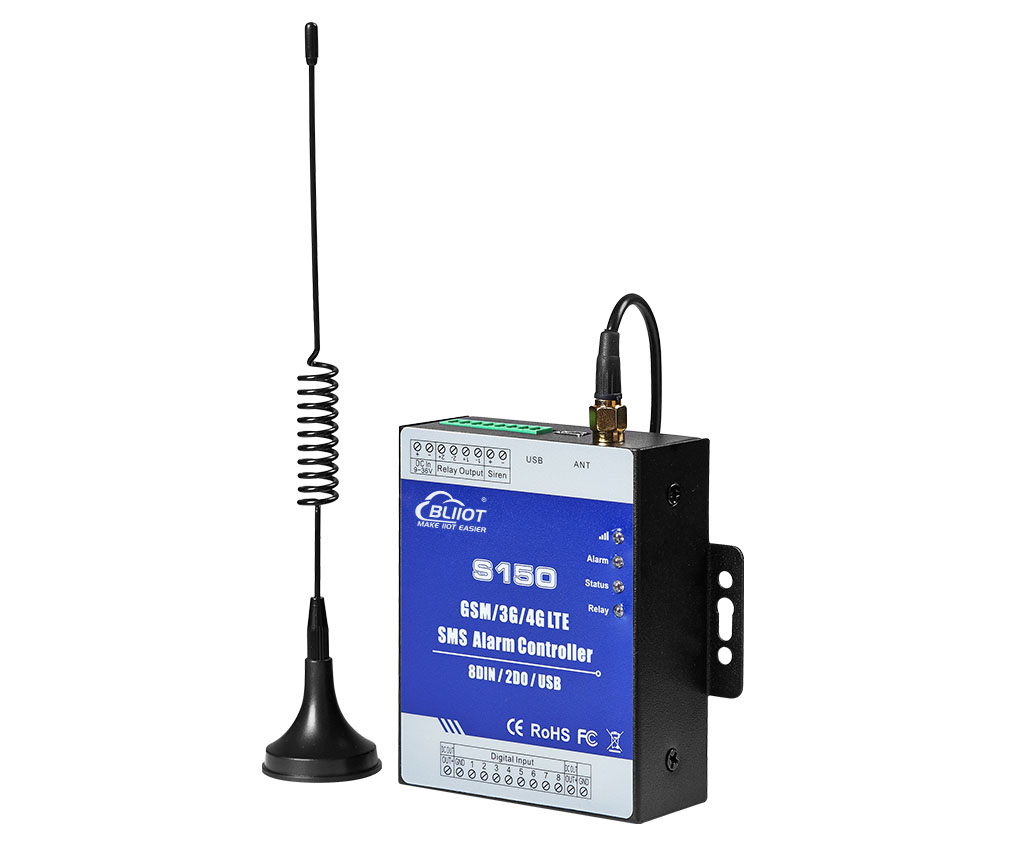

Name: GSM 3G 4G SMS Remote Controller Alarm (8DIN+2DO+USB)
Brand: Beilai Tech. Co., Ltd.
SKU: S150
Availability: InStock
Rating: 5 (1 reviews)

No.S150

S150 SMS Alarm features 8 digital inputs, 2 relay outputs. The SMS Alarm allows you to monitoring and controlling remotely by SMS. It is widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

Request Pricing Download

Description

S150 is a cost-effective Cellular SMS Controller. The SMS controller features 8 digital inputs, 2 relay outputs, it can be connected to various detectors, such as water level detectors, door sensors, infrared detectors, temperature detectors, humidity detectors, water immersion detectors, glass breakage detectors, shock detectors, motion detectors, and others.

The SMS Alarm allows you to monitoring and controlling remotely by text message. When any input triggered or recovery, will switch on the relay automatically, and send SMS immediately. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

The SMS controller features powerful SMS functions, send a SMS to Arming, Disarming, Close relay, Open relay, Query device status, Set alarm verify time, etc.

Key Features

Stable and reliable, easy to use, can be set by computer, control by SMS commands (AA, BB, CC, DD, EE) or software
2/8 digital input (Dry contact, NO, NC, or EOL), used to connect various detectors, such as water level detectors, door sensors, infrared detectors, temperature detectors, humidity detectors, water immersion detectors, glass breakage detectors, shock detectors motion detectors, etc.
1 channel alarm linkagerelay output, which can be used to set the relay closing time when a certain input or multiple inputs are triggered
1 channel SMS control relay output, users can use SMS password + CC to close (turn on the device) relay, or use the SMS password + DD to open (turn off the device) the relay
SMS arming, the user can use SMS AA to arm, in this state, when the input is triggered, the alarm will occurs, and the alarm will be sent to 3 phone number and dial 5 preset phone numbers, and activate the siren at the same time, if there is a linkage relay action set, it will be automatically open or close the relay, the content of the alarm message can be modified by the user
SMS disarming, the user can use SMS BB to disarm, after disarm, the input trigger will not alarm, such as the owner enters the anti-theft place. When the detector is in the debugging stage, it can be set to disarm state
SMS query status, the user can send SMS EE to the deviceto query the current status of the device;
In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;
Power failure alarm function, when the AC power fails or the AC power is restored, it will automatically send a text message to the user's mobile phone for alarm
Regular inspection, you can set the 0-240 hour deviceautomatic reporting function, to avoiding alarm failure caused by SIM CARD does not have enough balance
Password protection, only authorized users can control the device;

Typical Application Scenarios

Security Alarm System applications;
Supervision and monitoring alarm systems;
Automatic monitoring system;
Vending Machines security protection;
Pumping Stations, Tanks, Oil or Water levels;
Buildings and Real Estate;
Weather Stations;
River Monitoring and Flood Control;
Oil and gas pipelines;
Corrosion protection
Temperatures, water leakage applications;
Wellheads, boat, vehicle;
Energy saving, street lights control system;
Valve controls;
Transformer stations;
Unmanned machine rooms;
Control room application;
Automation System, M2M;
GSM Access Control System, GSM Gate Opener, etc.

Technical Specifications

Item	Specifications
DC Power Supply	Standard Adapter: DC 12V/1.5A
Power Consumption	Regular: 50mA; Max.:500mA
4G	L-E	GSM/EDGE:900,1800MHz WCDMA:B1,B5,B8 FDD-LTE:B1,B3,B5,B7,B8,B20 TDD-LTE:B38,B40,B41
	L-AU	GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 FDD-LTE:B1,B3,B4,B5,B7,B8,B28 TDD-LTE:B40
	L-A	WCDMA:B2,B4,B5 FDD-LTE:B2,B4,B12
	L-J	WCDMA：B1,B3,B8,B18,B19,B26 FDD：B2,B4,B12 TDD: B41
SIM Interface	Supporting 3V SIM Card
External Antenna	SMA Antenna interface, 50 Ohm
Digital Inputs	2/8 channel, Dry contact, NC, NO, or EOL
Relay Outputs	2 Relay Outputs, 7A@125VAC; 5A@250VAC; 20A@14VDC
Siren Output	1
Backup Battery	3.7V 900mAH
Exterior Dimension	70x88x30mm
Installation	35mm standard DIN rail(Optional); Wall mount (Default)

Model Selection

Model	Digital Input	Relay Output	Notice
S130	2	2	Two relay output, one is alarm linkage relay output, another one is SMS control relay output
S150	8	2

Packaging

1 x S150 Device
1 x Antenna
1 x Power adaptor
1 x Wiring terminal
