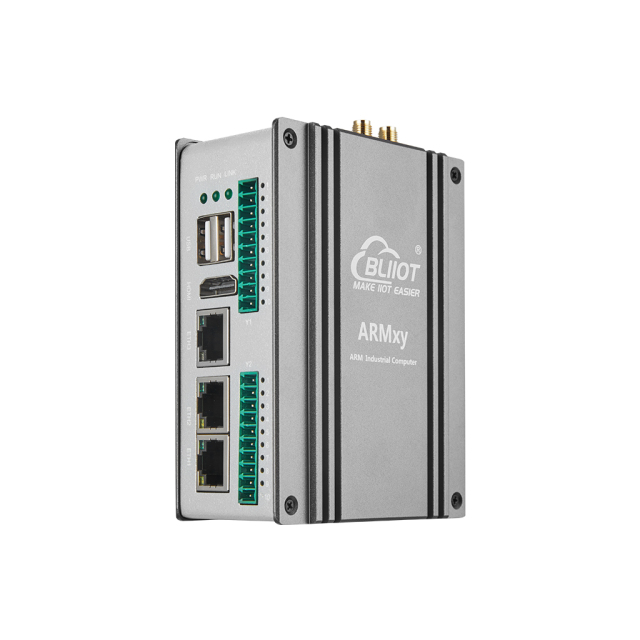

  • Raspberry Pi Industrial Computer

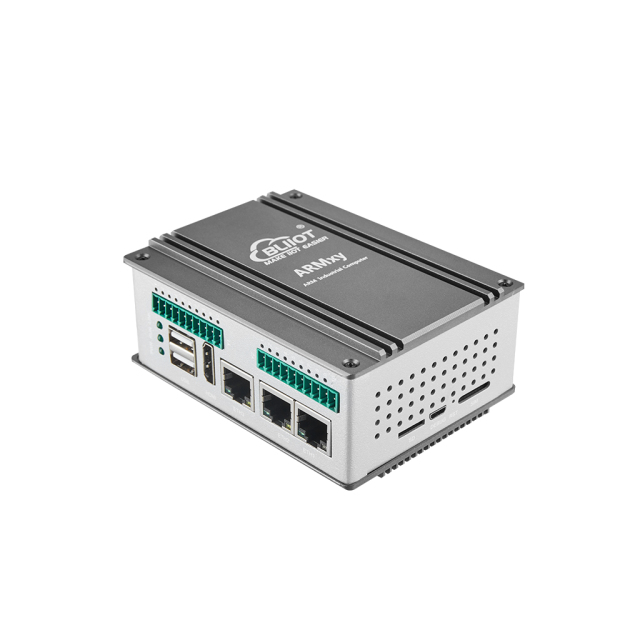

  • Raspberry Pi CM5 Computer

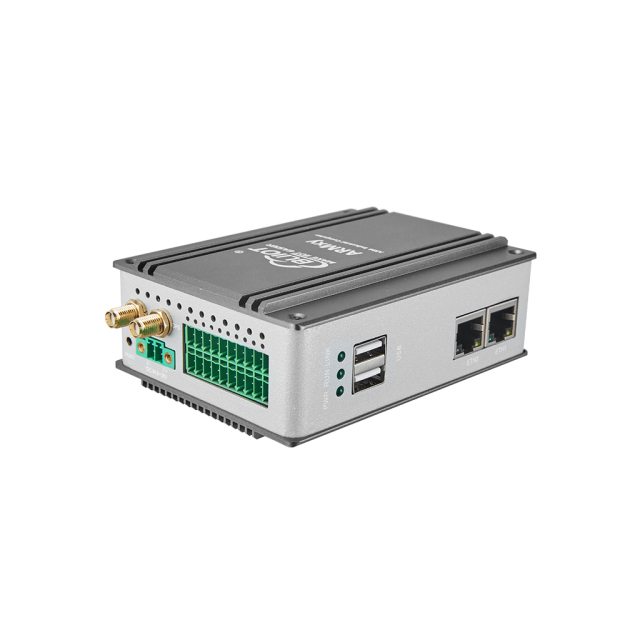

  • CM5 Industrial Gateway
  • Raspberry Pi Industrial Computer
  • Raspberry Pi CM5 Computer
  • CM5 Industrial Gateway

Raspberry Pi CM5 Industrial Embedded Computer

No.BL460 Series
Industrial AI Embedded Computer BL460 based on the Raspberry Pi CM5 module and compatible with the Raspberry Pi ecosystem, it offers richer and more flexible I/O options, enabling engineers familiar with Raspberry Pi to quickly start development of industrial edge computing applications and Industrial AI solutions.
Processor
Broadcom BCM2712 Rasberry Pi CM5
SoC
quad-core Cortex-A76 processor (up to 2.4GHz)
RAM
2/4/8/16GB
ROM
0GB (Lite)/16/32/64GB
Request Pricing Download

  • Description

  • Model Selection

ARMxy BL460 Series

Industrial Embedded Computer based on Raspberry Pi CM5

High-performance industrial ARM controller powered by Broadcom BCM2712 quad-core Cortex-A76 processor, up to 2.4GHz. Flexible modular configuration, rich I/O interfaces, and comprehensive software ecosystem for edge computing, industrial automation, and IoT gateway applications.

Core Features

High-performance, high-reliability, flexible configuration industrial embedded solution

High‑performance Multi‑core Architecture

  • Quad-core ARM Cortex-A76, up to 2.4GHz
  • VideoCore VII GPU, OpenGL ES 3.1 / Vulkan 1.2
  • 4Kp60 HEVC video decoding & encoding
  • Optional Hailo AI accelerator via M.2
  • Up to 16GB LPDDR4X & 64GB eMMC
  • High-performance edge AI inference capability

Rich Interfaces & Modular Expansion

  • 1~3 Ethernet ports (1x Gigabit + 2x Fast Ethernet)
  • 2x USB 3.0 (up to 5Gbps), 1x HDMI 2.1 (4K@60fps)
  • Mini PCIe (Wi‑Fi/4G), M.2 (SSD / Hailo AI)
  • X/Y expansion series: over 5000 I/O combinations
  • RS485, RS232, CAN, DI/DO, Relay, AI/AO, RTD, TC
  • 40‑pin GPIO (compatible with Raspberry Pi ecosystem)

Intelligent Software & Development Support

  • Linux 6.6.78 / Raspberry Pi OS / Ubuntu (by request)
  • Pre-installed BLIoTLink, BLRAT, QuickConfig
  • Node-RED, Docker, K3s container orchestration
  • AI frameworks: TensorFlow Lite, PyTorch, YOLO, OpenCV
  • CODESYS, OpenPLC, EtherCAT master (IGH)
  • Comprehensive SDK, demos & API documentation

Industrial‑grade Reliable Design

  • ESD, surge, EFT immunity (IEC 61000-4-2/4/5 Level III)
  • Wide temperature: -20°C ~ +85°C operation
  • DIN35 rail mounting & wall mount, aluminum alloy casing
  • IP30 protection, vibration (5‑500Hz, 2g) & free fall tested
  • Conformal coating option (on request)
  • Designed for harsh industrial environments

Flexible Configuration, Customizable

Modular design supporting extensive customization options

0
+
Module Combinations
0
°C
Operating Temperature
0
Mbps
Network Speed
0
K
Video Resolution

Typical Application Areas

Widely applicable to various industrial scenarios

Industrial Control & Automation

PLC expansion, production line control, equipment monitoring

Energy Storage & PV Systems

Inverter control, battery management, energy monitoring

IoT Gateway & Edge Computing

Protocol conversion, data acquisition, edge AI analysis

Rail Transit & Intelligent Transportation

Signal control, vehicle monitoring, station management

Smart Manufacturing & AGV

Industrial robots, AGV controllers, motion control

Protocol Conversion & Device Interconnection

Modbus, CAN, BACnet, OPC UA, MQTT gateway

Quality Certification & Reliability

Passed multiple industrial standard tests ensuring stable and reliable operation

Electromagnetic Compatibility

  • GB/T 9254 Class A (CISPR 32) conducted/radiated emission
  • ESD: contact ±6kV, air ±8kV (IEC 61000-4-2 Level III)
  • Surge: diff. mode 2kV, common mode 4kV (IEC 61000-4-5 III)
  • EFT: power lines 2kV, signal lines 1kV (IEC 61000-4-4 III)
  • Voltage dips & interruptions (IEC 61000-4-11)
  • Power frequency magnetic field (IEC 61000-4-8 Level III)

Environmental Suitability

  • High/low temp startup/operation: -20°C ~ +85°C
  • Damp heat: 40°C, 85% RH, 48h powered
  • Sinusoidal vibration: 5‑500Hz, 2g, 10 cycles/axis
  • Free fall: 0.8m (packaged), 1 drop per face
  • IP30 protection (solid objects ≥2.5mm)
  • Compliant with GB/T 2423 / IEC 60068 series

Package & Technical Support

  • Controller, DIN35 bracket, terminal blocks included
  • Pre‑installed BLIoTLink, BLRAT, QuickConfig
  • Linux file system, kernel source, development tools
  • Comprehensive SDK, demo programs, tutorials
  • Long‑term after‑sales & customization service
  • Optional Wi‑Fi/4G antennas and accessories

Start Configuring Your ARMxy BL460

The ARMxy BL460 series inherits the Raspberry Pi CM5 ecosystem and offers three core advantages: high performance, industrial reliability, and flexible modular I/O — ideal for edge computing, industrial automation, energy management, and AI vision applications.

Online Configuration Tool Download BL460 Datasheet Contact Technical Support

ARMxy BL460 Configuration Tool

Configure your Raspberry Pi CM5 based industrial computer in 5 steps

1
Main Unit
2
SOM Board
3
X-Board
4
Y-Board(s)
5
Wireless

Select Main Unit

Choose BL460 base model: Ethernet ports, Y‑slot count, and X‑board pinout

BL460

1x GbE, 2x USB 3.0, 6-pin X-board slot, no Y-board.

Ethernet:1x1000M
USB:2x USB 3.0
Y‑slots:0

BL460A

1x GbE, 2x USB 3.0, 20-pin X-board slot, no Y-board.

Ethernet:1x1000M
USB:2x USB 3.0
Y‑slots:0

BL460B

1x GbE, 2x USB 3.0, 20-pin X-board, 2 Y‑board slots.

Ethernet:1x1000M
USB:2x USB 3.0
Y‑slots:2

BL460C

1x GbE, 2x USB 3.0, 10-pin X-board slot, no Y-board.

Ethernet:1x1000M
USB:2x USB 3.0
Y‑slots:0

BL461

1x GbE + 1x 100M, 2x USB 3.0, 6-pin X-board, no Y-board.

Ethernet:1x1000M+1x100M
USB:2x USB 3.0
Y‑slots:0

BL461A

1x GbE + 1x 100M, 2x USB 3.0, 20-pin X-board, no Y-board.

Ethernet:1x1000M+1x100M
USB:2x USB 3.0
Y‑slots:0

BL461B

1x GbE + 1x 100M, 2x USB 3.0, 20-pin X-board, 2 Y‑slots.

Ethernet:1x1000M+1x100M
USB:2x USB 3.0
Y‑slots:2

BL462

1x GbE + 2x 100M, 2x USB 3.0, HDMI, 6-pin X-board, no Y-board.

Ethernet:1x1000M+2x100M
USB:2x USB 3.0
Y‑slots:0

BL462A

1x GbE + 2x 100M, 2x USB 3.0, HDMI, 20-pin X-board, no Y-board.

Ethernet:1x1000M+2x100M
USB:2x USB 3.0
Y‑slots:0

BL462B

1x GbE + 2x 100M, 2x USB 3.0, HDMI, 20-pin X-board, 2 Y‑slots.

Ethernet:1x1000M+2x100M
USB:2x USB 3.0
Y‑slots:2

Select SOM Board (CM5 series)

Choose memory, storage, and WiFi capability

Select X-series I/O Board

Compatible with main unit pin count (6/10/20-pin)

Select Y-series I/O Board(s)

Analog, digital, RTD, PWM modules – Y63 restricts second slot

Important Note

When Y63 is selected, you cannot select a second Y-series I/O board. The system has automatically cleared the second Y-board selection.

Select Wireless Module

Add Wi-Fi (W) or 4G/LTE (L) to your configuration

No Wireless

Wired connectivity only.

Wi-Fi Module

Adds "W" to model number.

4G/LTE Module

Adds "L" to model number.

Configuration Complete

Your Custom ARMxy BL460 Model:
BL460-CM5002000-X10
Main Unit
BL460
No Y-board slots
SOM Board
CM5002000
2GB RAM, 0GB (Lite), -20~85°C, No built-in WiFi
X-series Board
X10
2x RS232/485 (6-pin)
Y-series Board(s)
None
No Y-boards selected
Wireless Module
None
Wired only
Total Configuration
1 Product
Ready for deployment
  • Raspberry Pi Industrial Computer
  • Raspberry Pi CM5 Computer
  • CM5 Industrial Gateway

Want to get more information?

REQUEST A QUOTE
IIoT Gateway Manufacturer

CONTACT US

If you have any queries, get in touch today! Don't hesitate. We try to take the extra step for our customer satisfaction.
FirstName*
LastName*
Email*
Message*
Code*
Verification Code
Home
AIoT&Industrial AI
Industrial IoT
Industrial Automation
Smart Energy
Smart Building
Smart Factory
Contact
2F, A2 Building, Fuhai Information Port, Fuyong, Baoan, Shenzhen, China
bl31@bliiot.com
0086-755-29451836
Become a Partner
Become a BEILAI authorized distributor. We provide stable product supply, competitive pricing, and professional assistance to help you succeed in your local market.
Contact Us
Follow Us
Privacy Policy
Copyright © 2005-2025 Beilai Tech. Co., Ltd. All Rights Reserved.
Leave a message
FirstName*
LastName*
Email*
Message*
Code*
Verification Code
We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.
